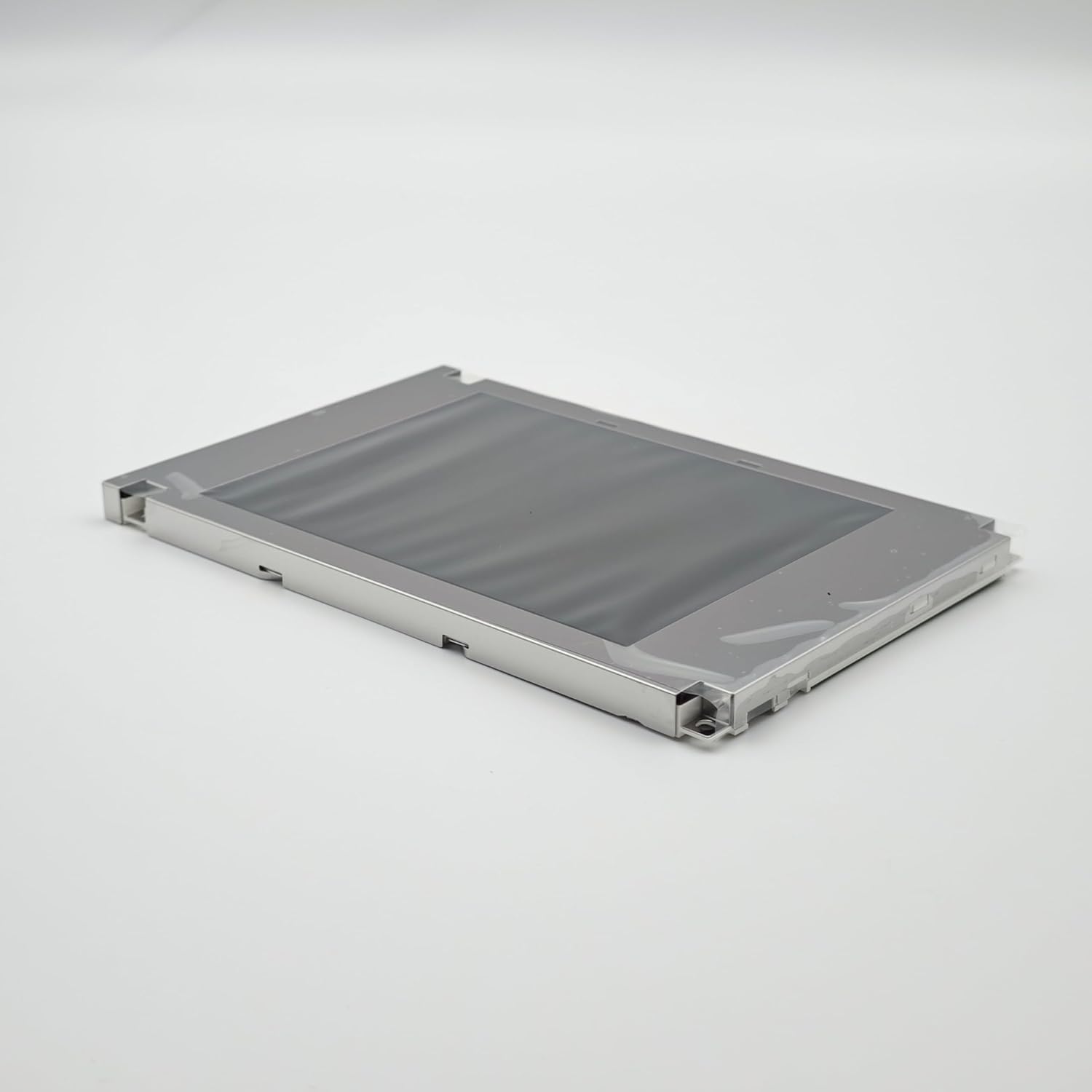

TX14D24VM1BAA 5.7 Inch TFT-LCD Display Module 320×240 QVGA Resolution RGB Parallel Interface for Industrial

This 5.7 inch a-Si TFT-LCD display module features 320×240 QVGA resolution with 4:3 aspect ratio. Pixels are arranged in RGB vertical stripe pattern.Specifications: - Display Size: 5.7 inch diagonal - Panel Type: a-Si TFT-LCD - Resolution: 320 × 240 (QVGA) - Aspect Ratio: 4:3 - Display Mode: TN, Normally White, Transmissive - Active Area: 115.2mm × 86.4mm - Outline Size: 167mm × 109mm × 9.7mm - Viewing Area: 119.4mm × 90.6mm - Brightness: 450 cd/m² (Typ.) - Contrast Ratio: 600:1 (Typ.) - Display Colors: 262K (60% NTSC) - Viewing Angle: 60/60/75/55 (L/R/U/D) (CR≥10) - Best View Direction: 12 o'clock - Response Time: 45 ms (Typ.) (Tr+Td) - Backlight: 3S5P WLED, Edge light type, 50,000 hours - LED Driver: Built-in - Interface: Parallel RGB (1 ch, 6-bit), 40 pins connector - Input Voltage: 3.3V (Typ.) - Frame Rate: 60Hz - Touch Screen: Without - Panel Weight: 168g (Typ.) - Operating Temperature: -30℃ to +80℃ - Storage Temperature: -30℃ to +80℃Application: - Industrial HMI and control panels - Automation equipment displays - Instrumentation and test equipment - Medical equipment screens - Embedded systems requiring reliable TFT displayProduct Information: - Model: TX14D24VM1BAA - Display: 5.7 inch TFT-LCD, 320×240 QVGA - Interface: Parallel RGB, 40 pins - Backlight: LED with built-in driver, 50,000 hours

• 5.7 inch a-Si TFT-LCD display module with 320×240 QVGA resolution and 4:3 aspect ratio for industrial applications
• 450 cd/m² brightness with 600:1 contrast ratio and 262K display colors for clear and vivid image quality
• Wide operating temperature range from -30℃ to 80℃ suitable for harsh industrial environments
• 262K display colors with 60% NTSC color gamut for rich and accurate color reproduction
• Parallel RGB interface (1 ch, 6-bit) with 40 pins connector, 3.3V typical input voltage
